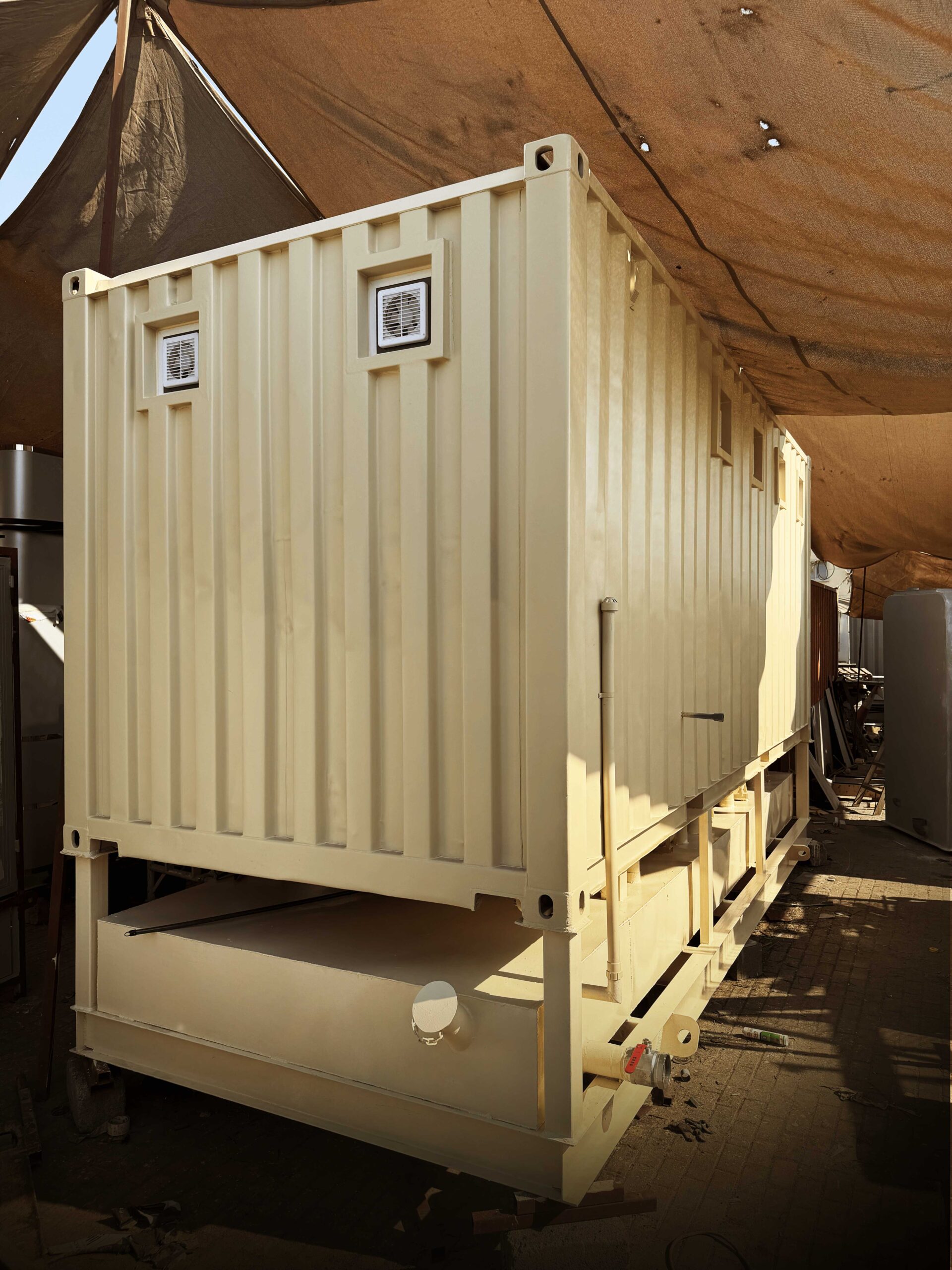

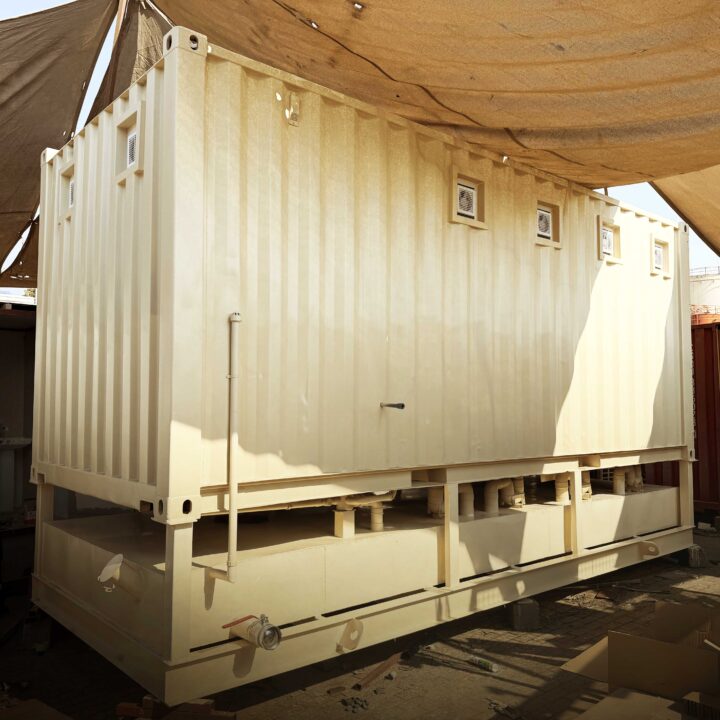

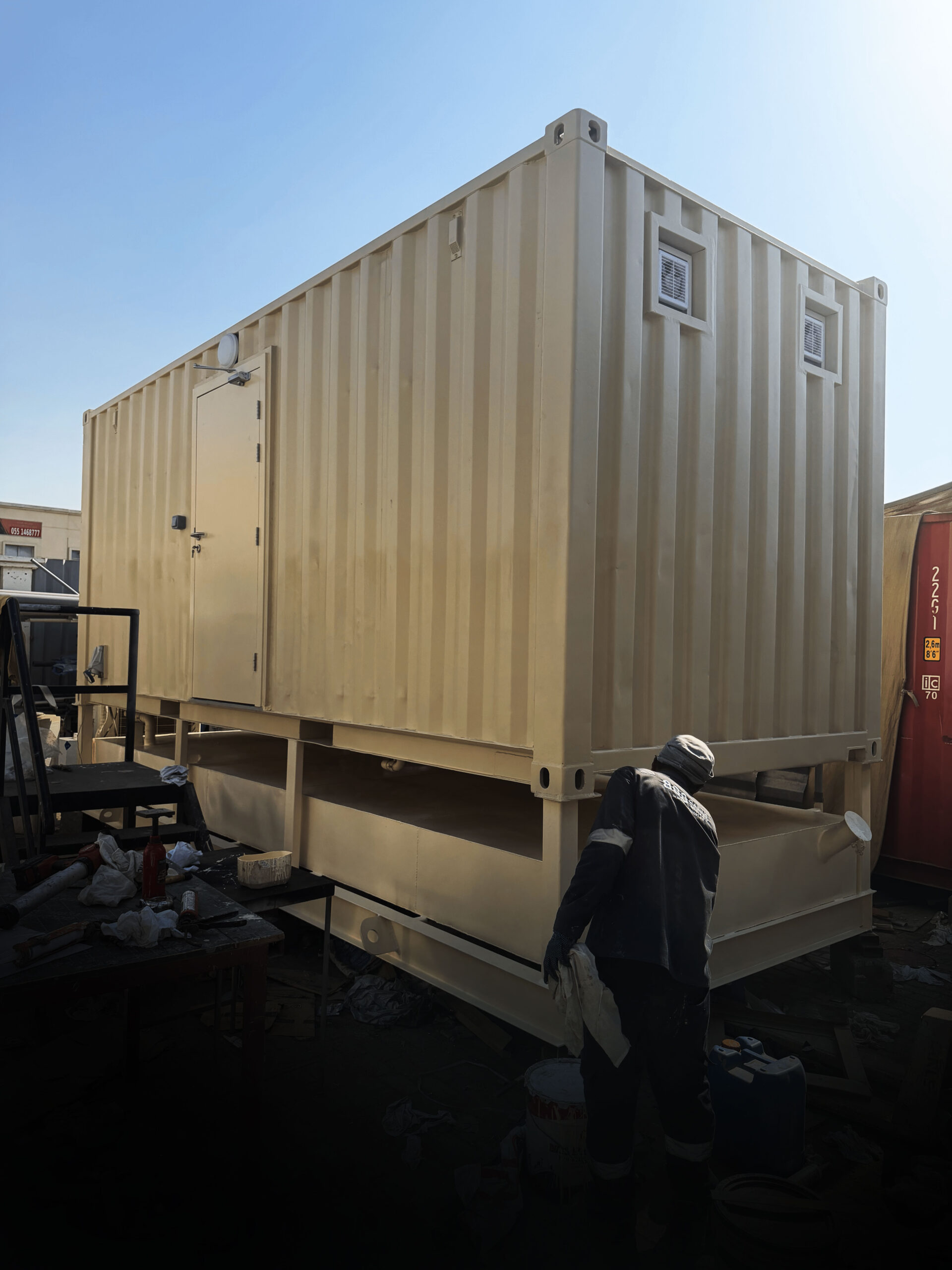

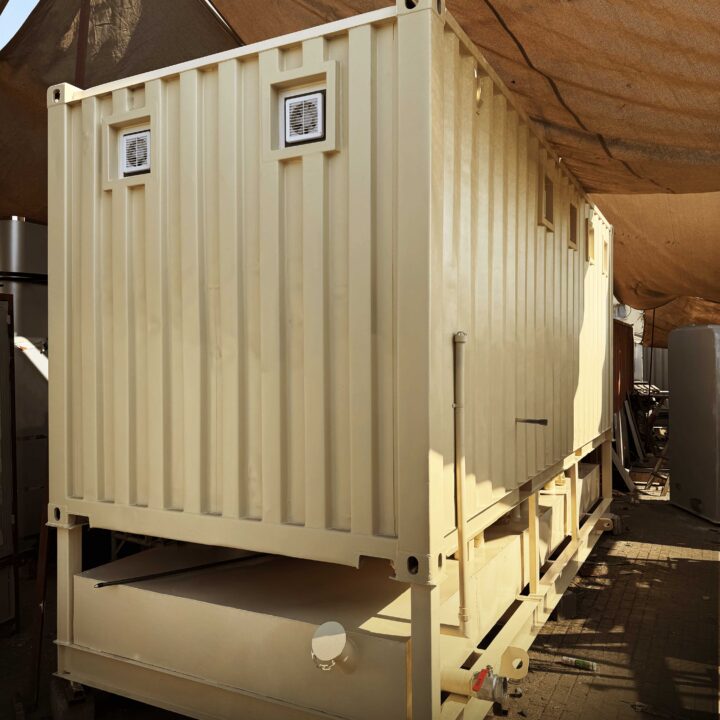

This project involved the conversion of a used 20ft standard shipping container into a fully equipped containerized toilet facility for Drydocks World – Dubai. The facility was designed to provide a durable, hygienic, and air-conditioned sanitation solution suitable for demanding industrial and marine environments.

Toilet & Sanitary Facilities

The container includes:

• 4 x Asian Toilet Cabins
• 4 x Urinals
• 3 x Wash Basins

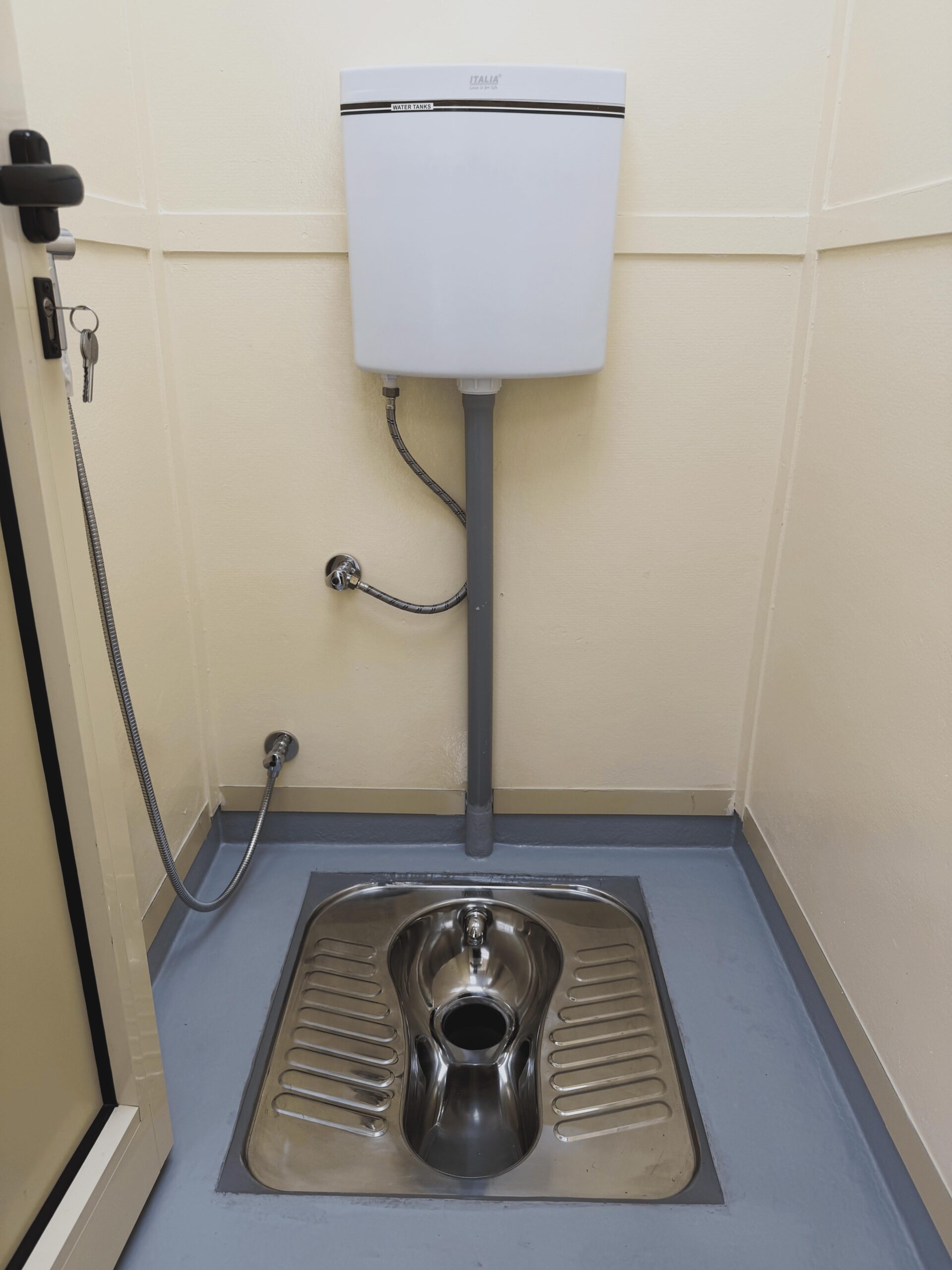

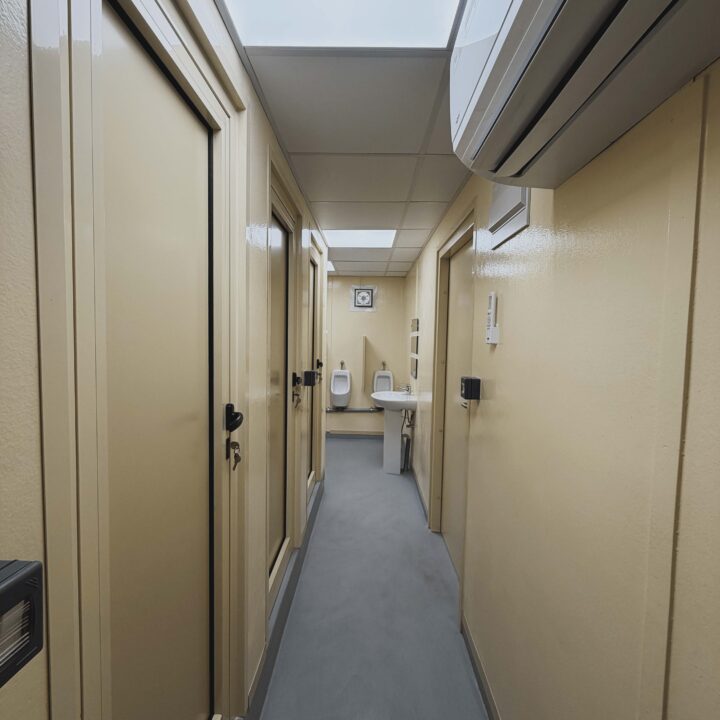

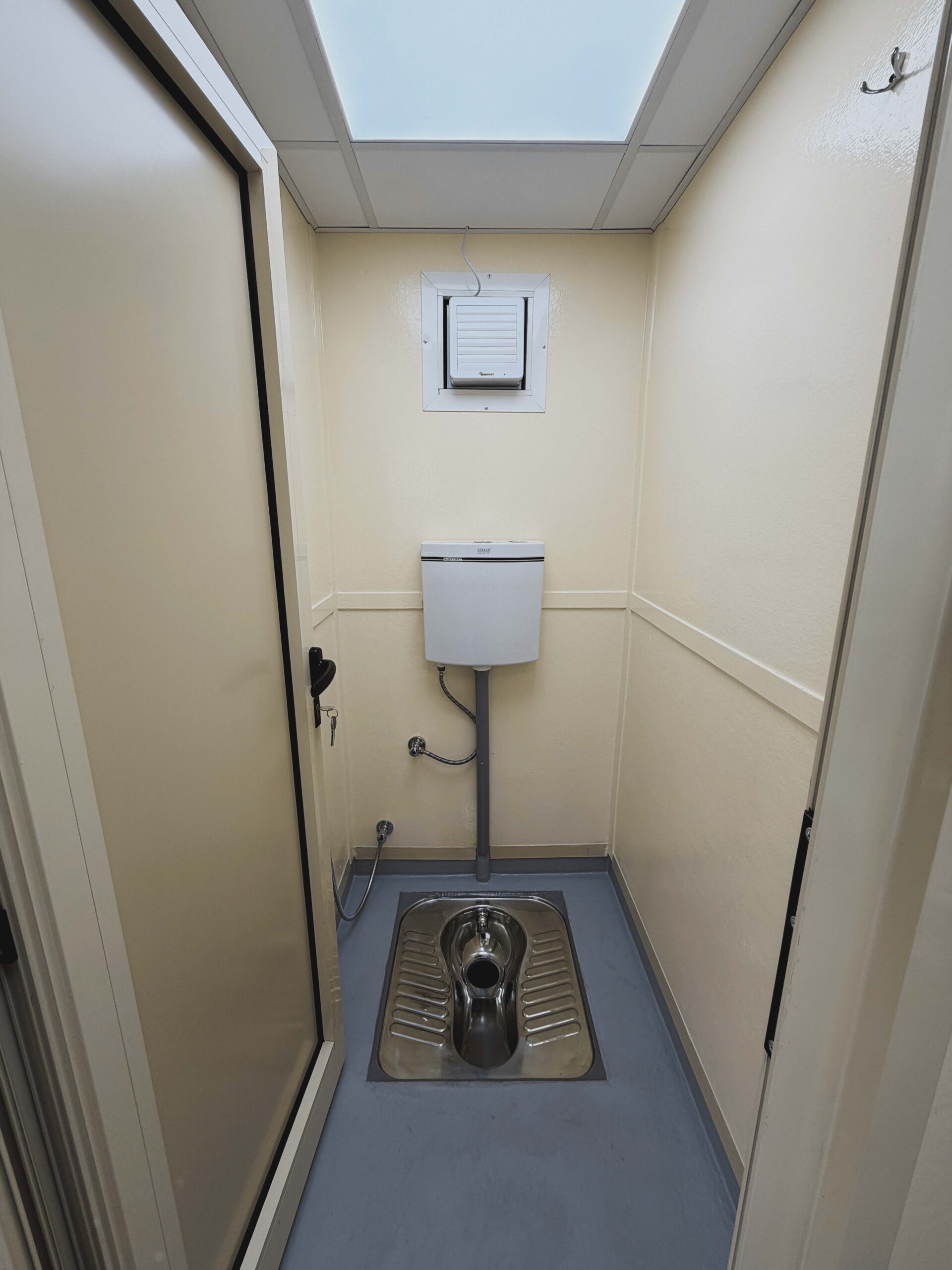

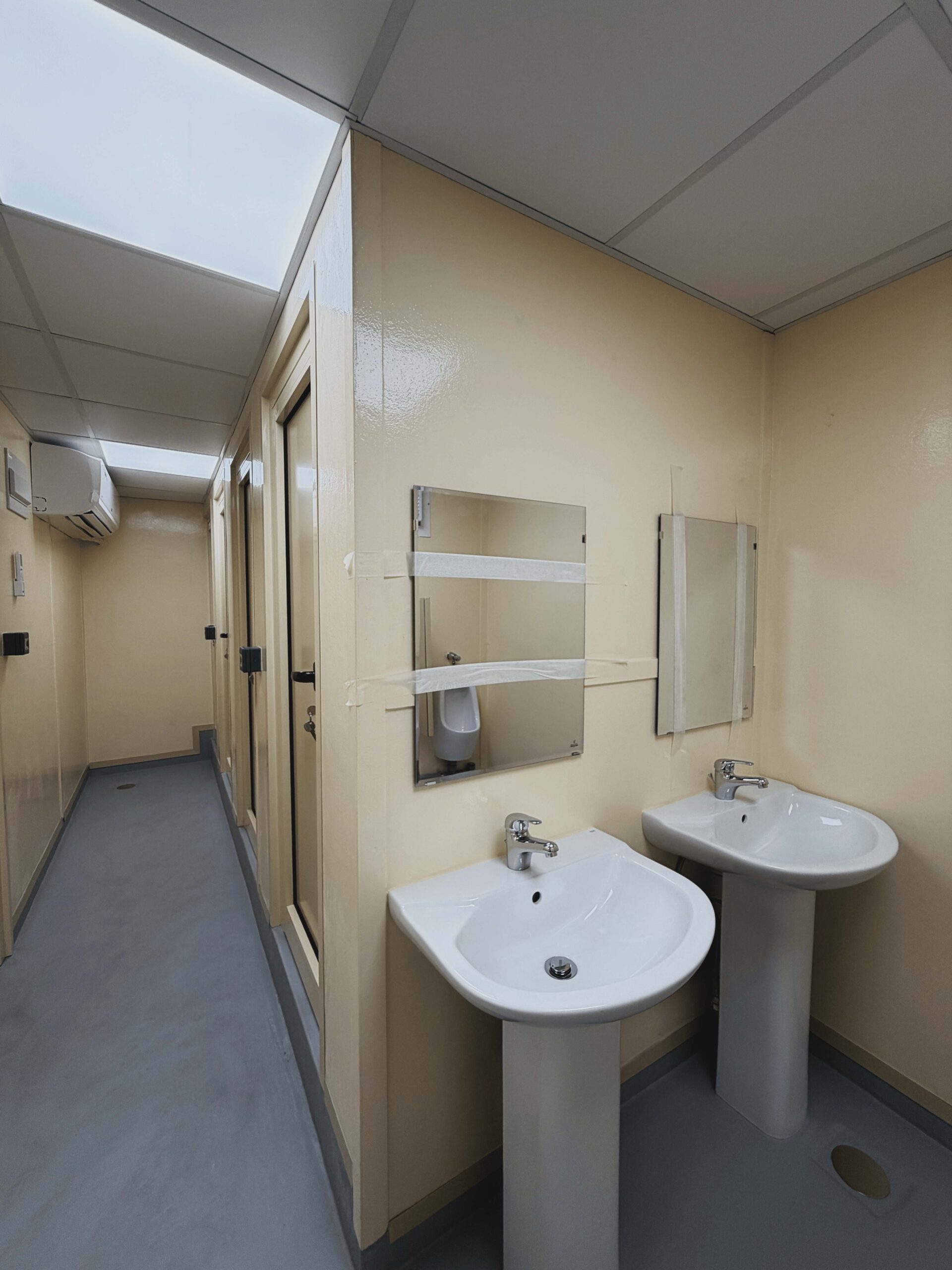

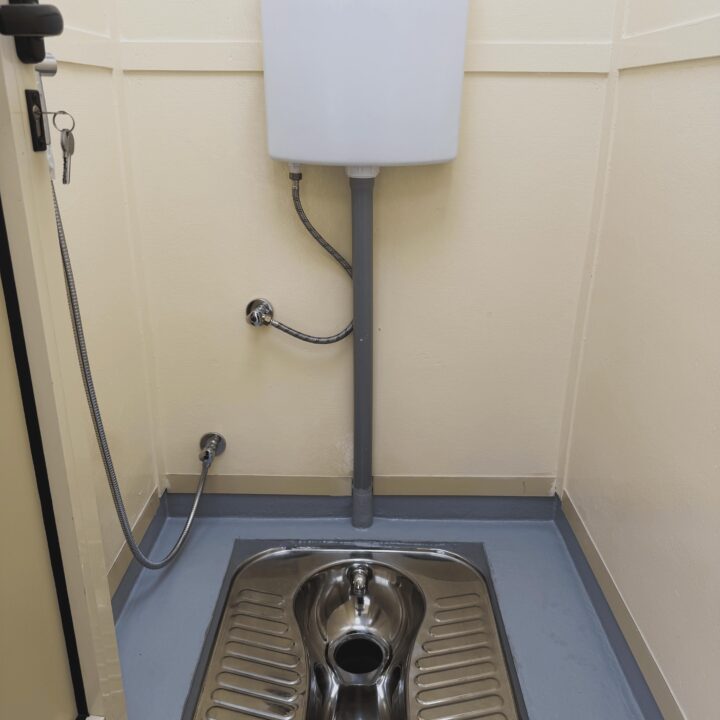

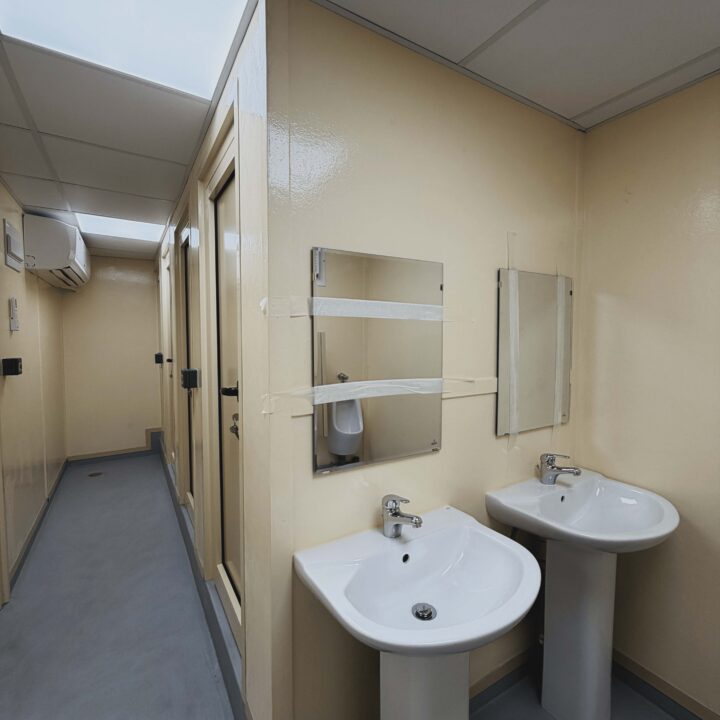

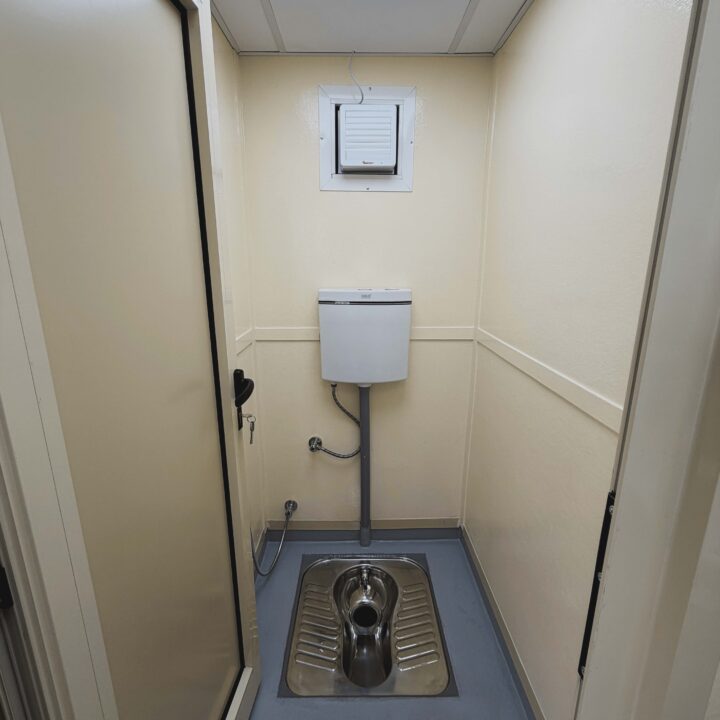

Each toilet cabin is equipped with a stainless-steel Asian WC and Shattaf. The common area includes mirrors, soap dispensers, urinals with flushing systems, and washbasins with water taps.

Technical Specifications

• Container: 20ft Standard Used Container
• Frame: Steel Base Chassis
• Internal Walls: 6mm thick cement board
• Wall Insulation: 50mm thick glass wool, 12kg/m³ density
• Flooring: 28mm marine plywood and 18mm cement board, finished with GRP lamination
• Fresh Water Tank: Not applicable; provision provided

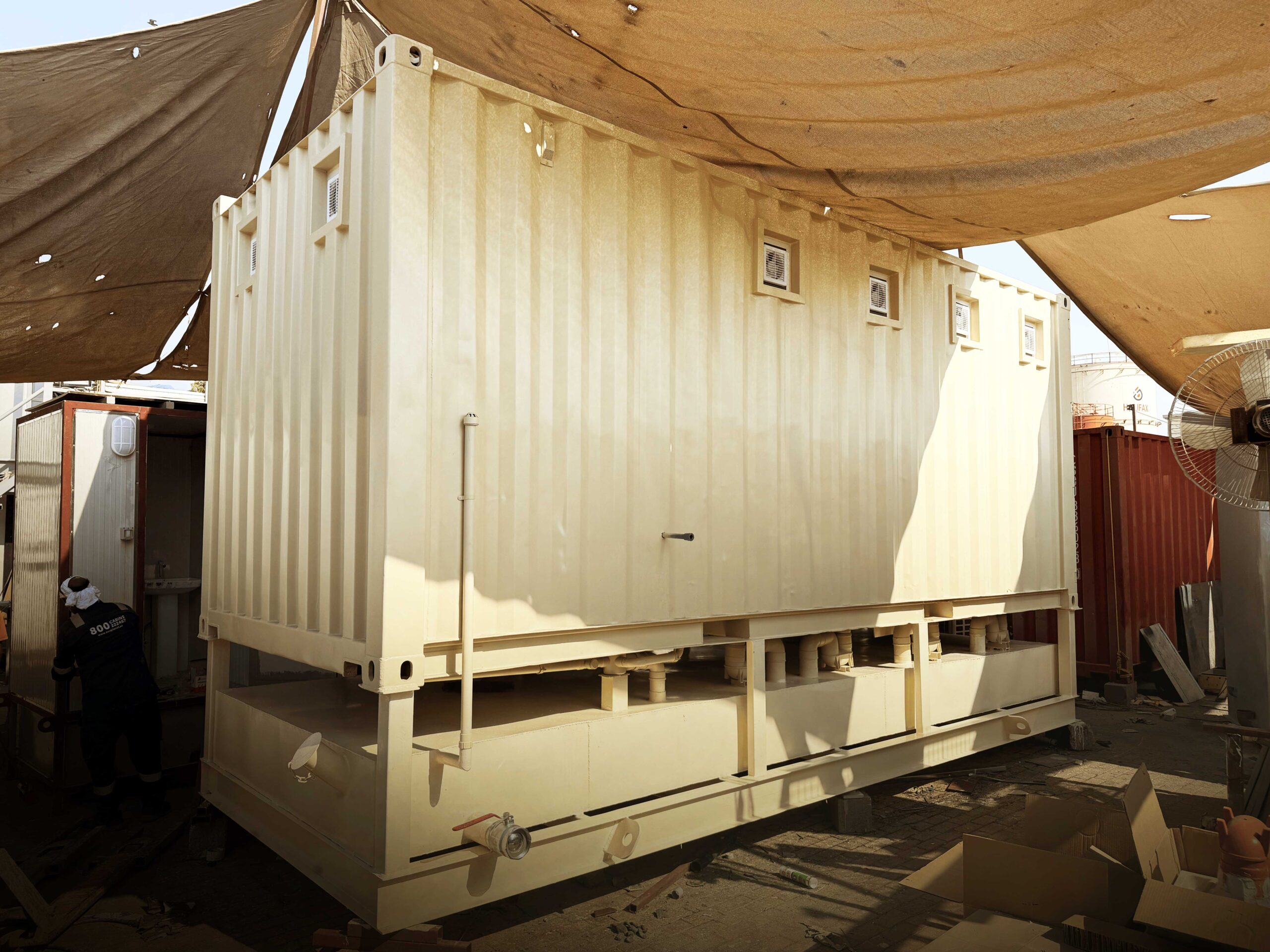

• Waste Tank: 1,500 US gallon built-in tank

Doors

• External: Fire-rated steel doors
• Internal: Powder-coated aluminium frame doors

Plumbing

PPR piping system provided for fresh water supply and sanitary plumbing requirements.

HVAC & Ventilation

• 1 x 2.5 Ton Carrier split air-conditioning unit
• Exhaust fans provided for each toilet cabin and the common area
• Exhaust fans fitted with powder-coated aluminium frames

Electrical & Lighting

The electrical installation includes:

• LED lights
• Electrical switches
• Waterproof power sockets
• Distribution Board (DB)
• ELCB protection

Project Details

Client: Drydocks World – Dubai
Location: Dubai, United Arab Emirates

Project 2: 20ft Container Toilet – Mixed Toilet Configuration

Project Overview

The second project involved the conversion of a used 20ft standard shipping container into a fully equipped container toilet facility for Drydocks World – Dubai. The facility incorporates both Asian and European toilet arrangements, together with urinals and washbasins, providing a practical and flexible sanitation facility.

Toilet & Sanitary Facilities

The container includes:

• 2 x Asian Toilet Cabins
• 2 x European Toilet Cabins
• 4 x Urinals
• 3 x Wash Basins

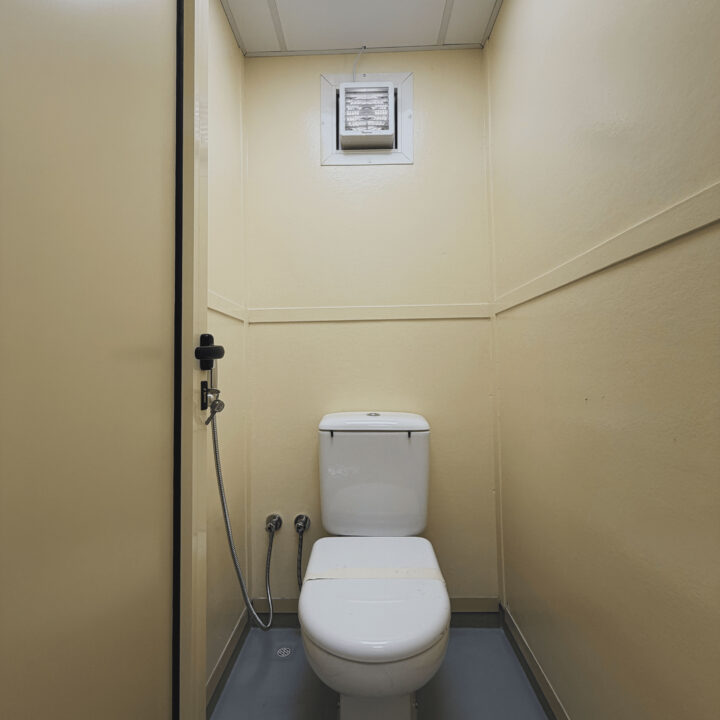

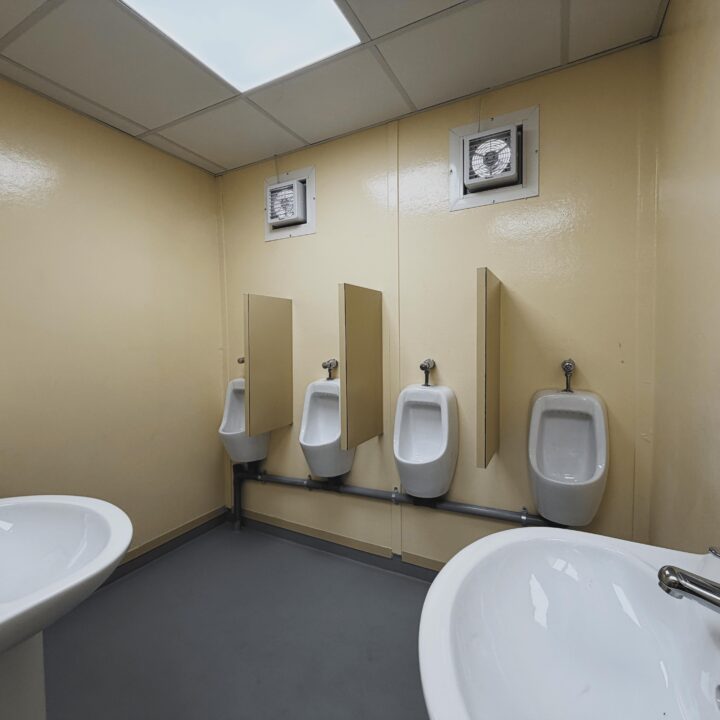

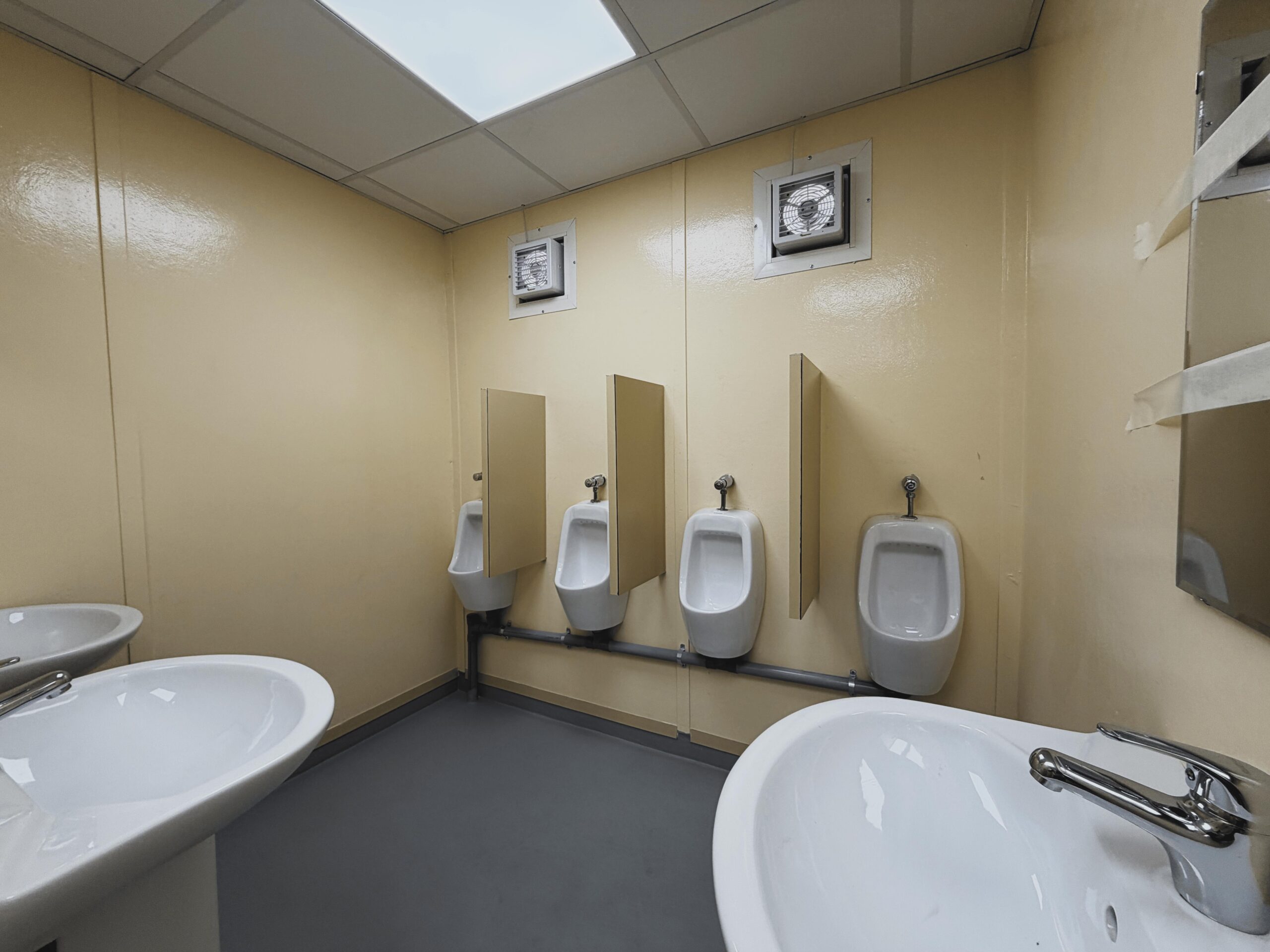

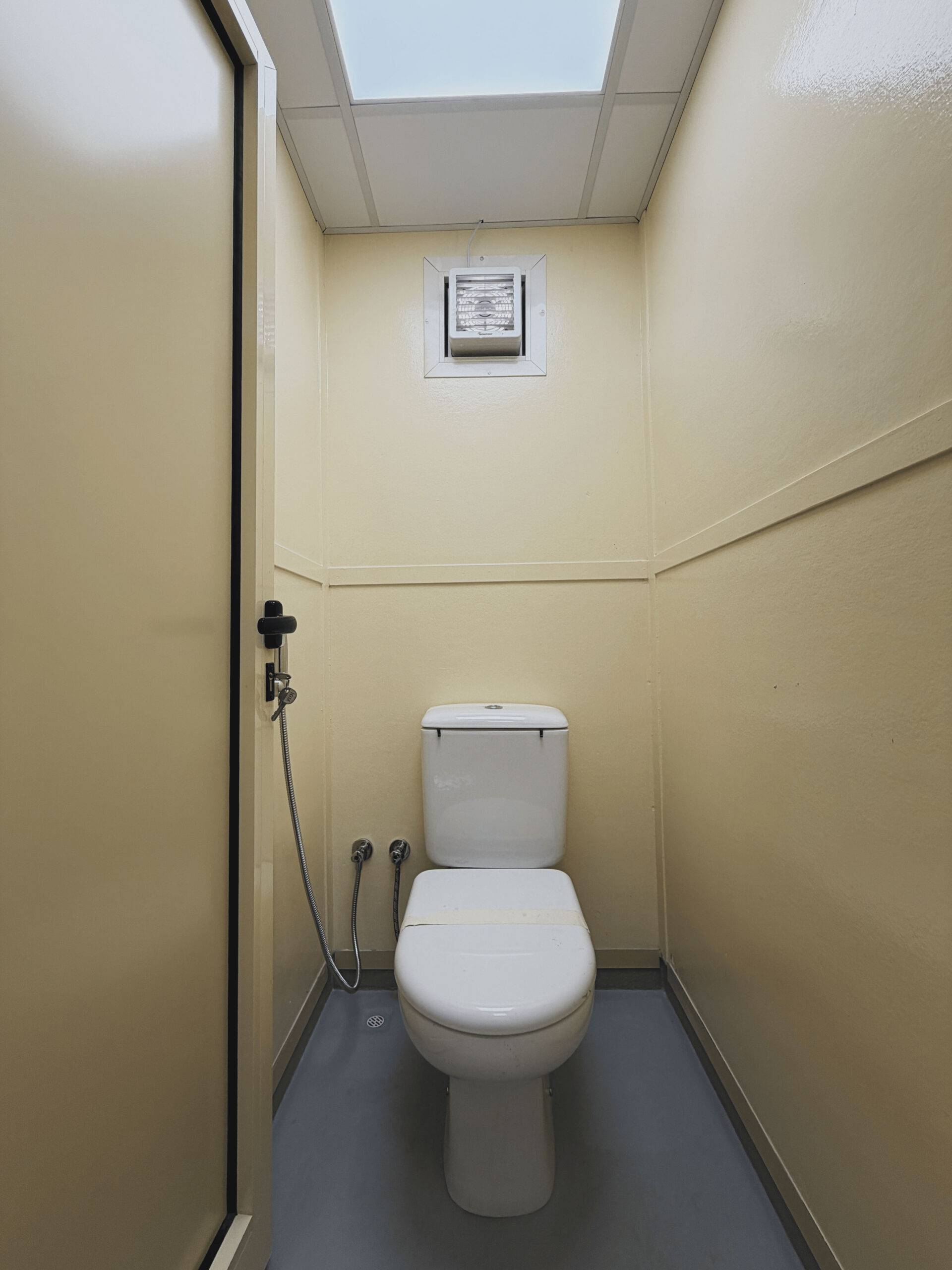

The toilet cabins are equipped with stainless-steel Asian WCs, European WCs, and Shattafs. The common area is fitted with mirrors, soap dispensers, flushing urinals, and washbasins with water taps.

Technical Specifications

• Container: 20ft Standard Used Container
• Frame: Steel Base Chassis
• Internal Walls: 6mm thick cement board
• Wall Insulation: 50mm thick glass wool, 12kg/m³ density
• Flooring: 28mm marine plywood and 18mm cement board, finished with GRP lamination
• Fresh Water Tank: Not applicable; provision provided
• Waste Tank: 1,500 US gallon built-in tank

Doors

• External: Fire-rated steel doors
• Internal: Powder-coated aluminium frame doors

Plumbing

PPR piping provided for fresh water supply and plumbing connections.

HVAC & Ventilation

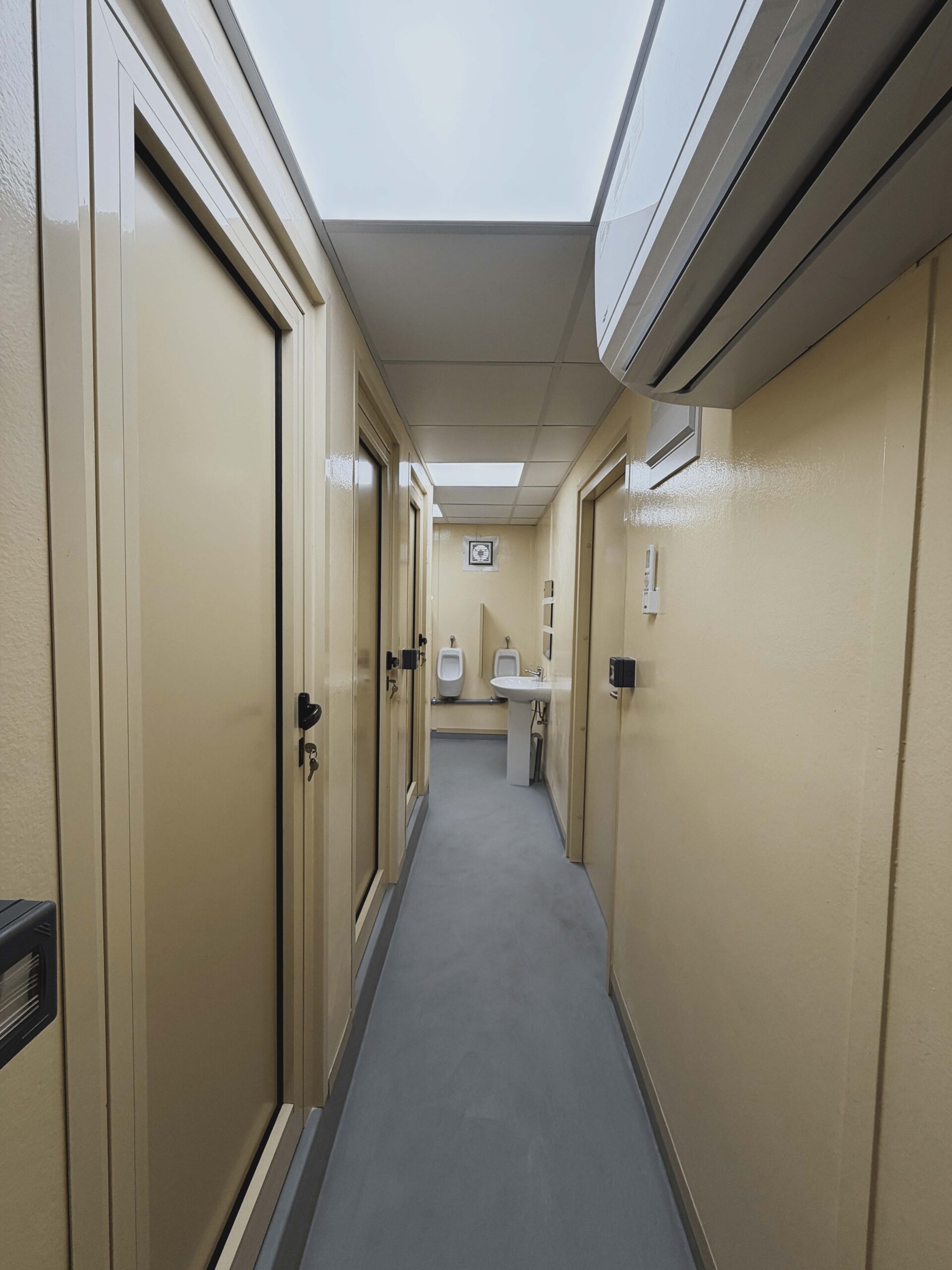

• 1 x 2.5 Ton Carrier split air-conditioning unit
• Exhaust fans provided for each toilet cabin and the common area
• Powder-coated aluminium frames for exhaust fan installations

Electrical & Lighting

The facility is equipped with:

• LED lighting
• Electrical switches
• Waterproof power sockets
• Distribution Board (DB)
• ELCB protection

Project Details

Client: Drydocks World – Dubai
Location: Dubai, United Arab Emirates

Project Summary

Both projects were delivered for Drydocks World – Dubai, providing robust and purpose-built containerized toilet facilities. The two configurations offer different sanitary arrangements while maintaining the same durable construction, insulation, GRP-finished flooring, air conditioning, ventilation, plumbing, and electrical systems required for reliable operation in demanding site environments.
