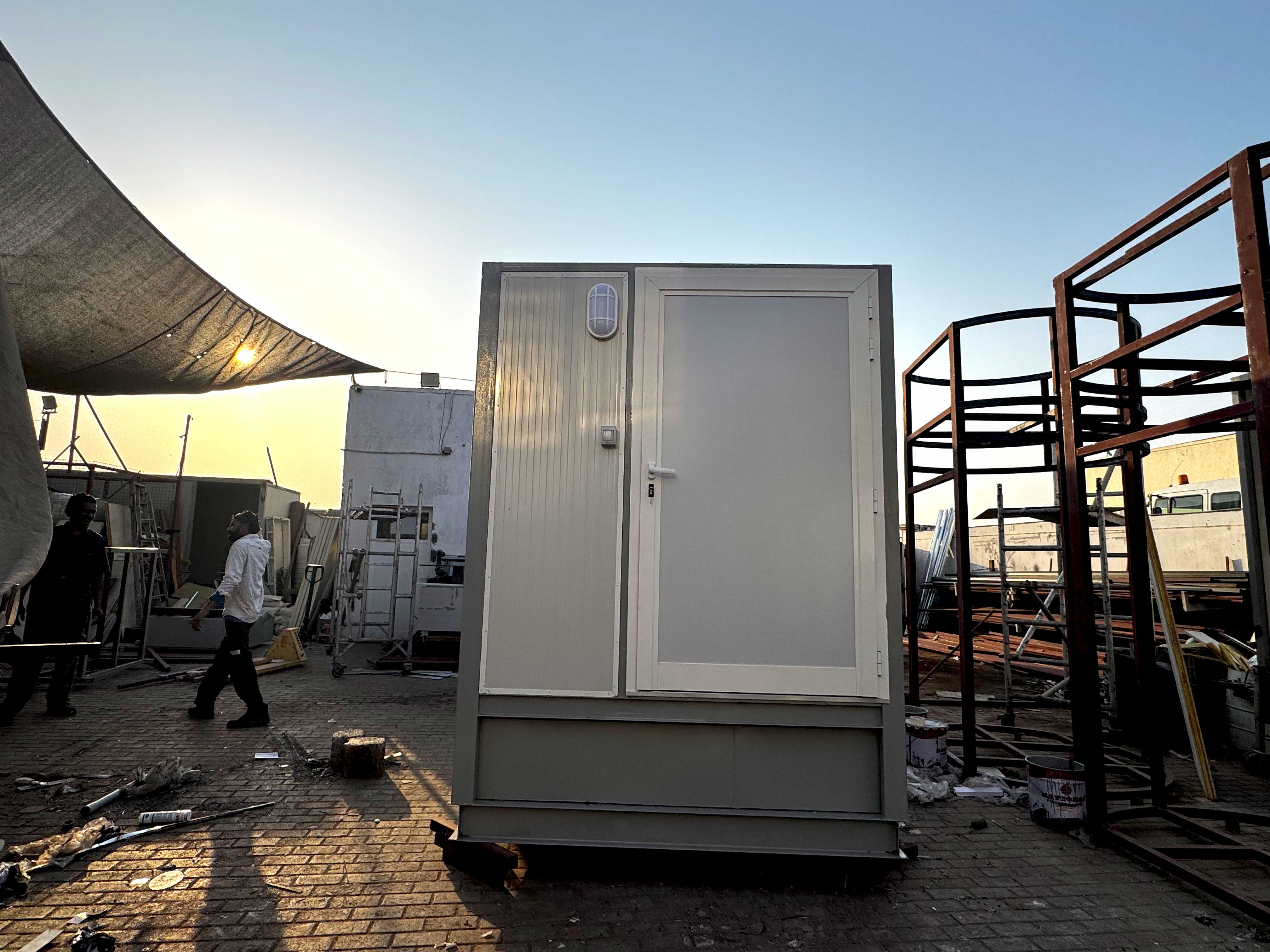

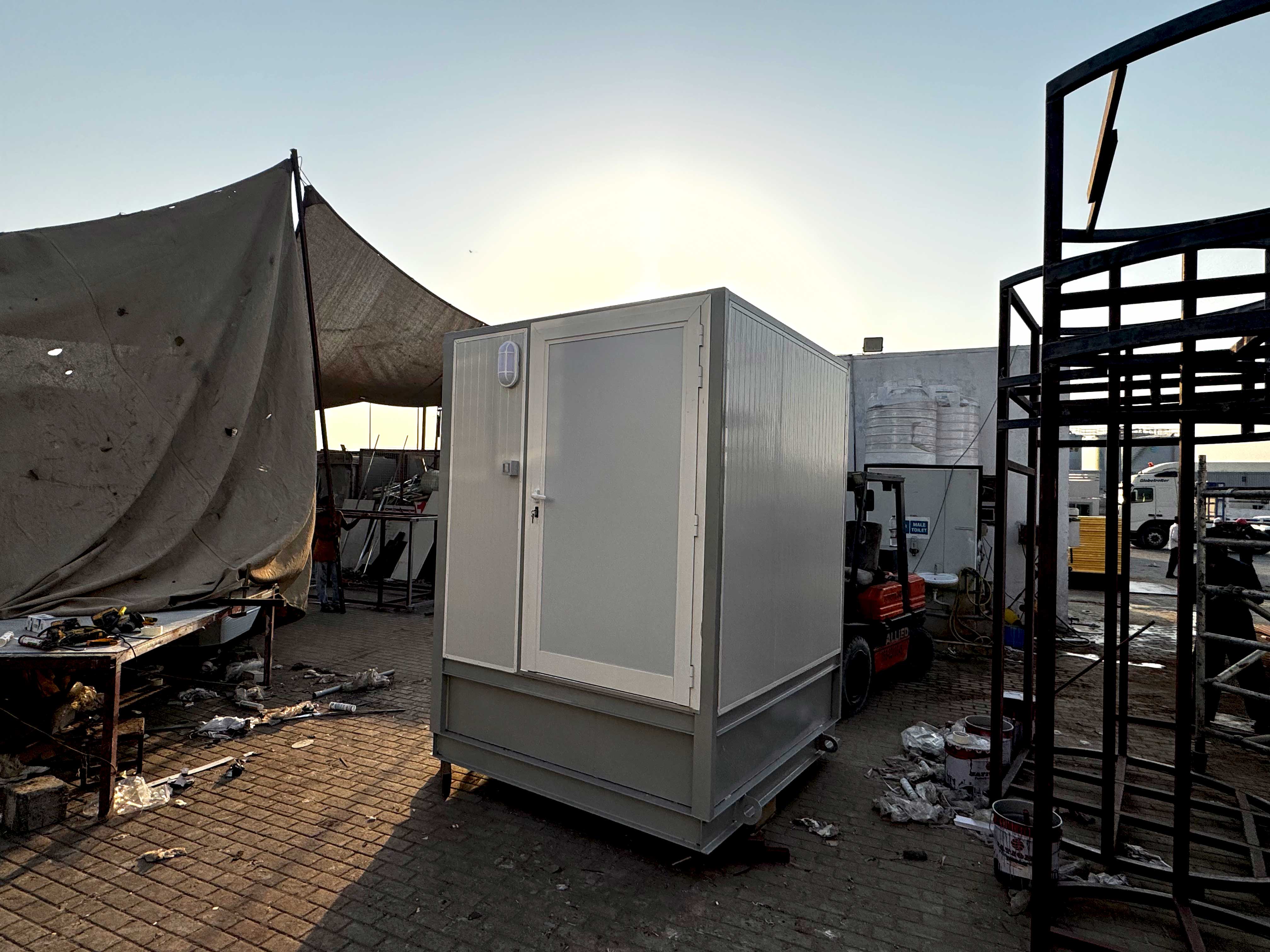

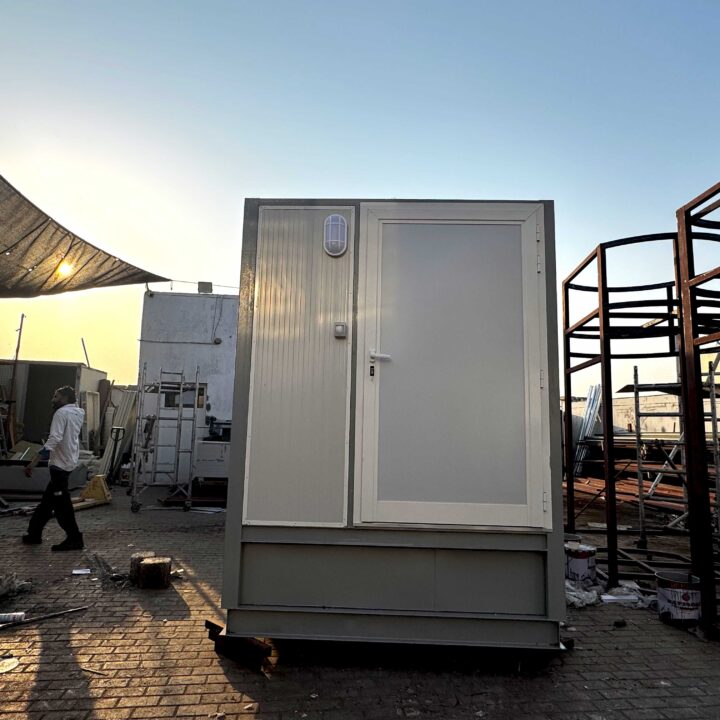

Accessible Portable Toilet – Dubai Metro Blue Line

This project involved the design and fabrication of a handicapped/disabled-accessible portable toilet cabin for the Dubai Metro Blue Line project. The facility is designed to provide a safe, comfortable, and accessible sanitation solution, incorporating dedicated accessibility features along with durable construction and essential plumbing and electrical systems.

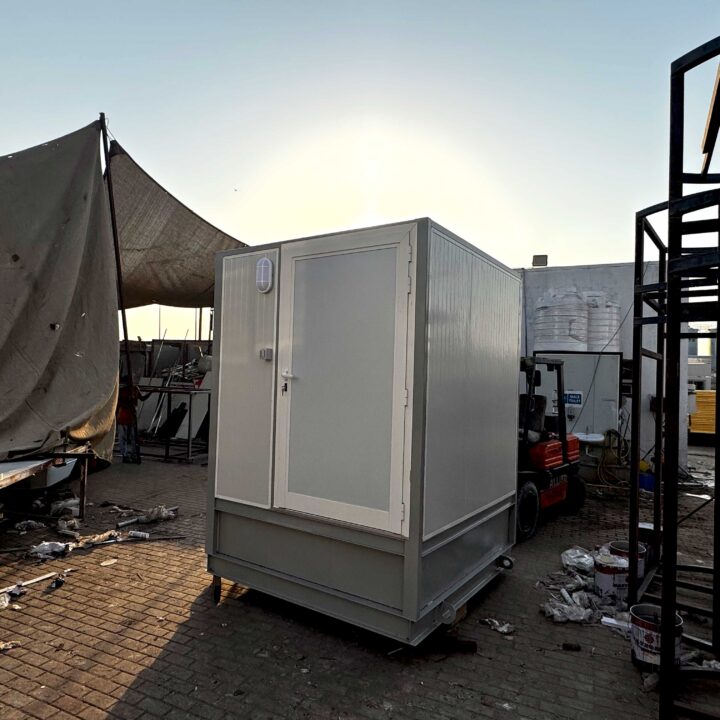

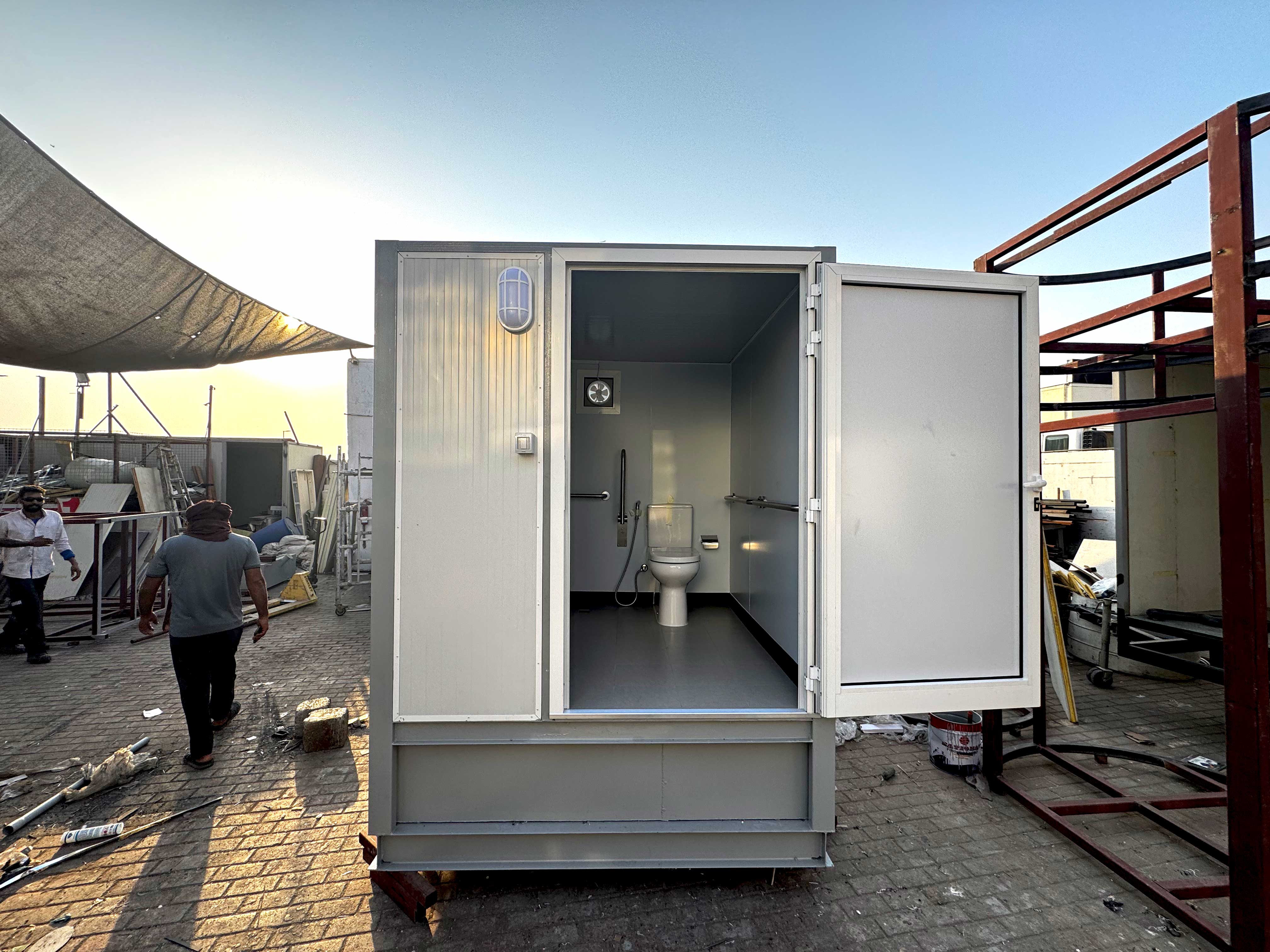

Cabin Specifications

• Size: 2.0 Mtr L x 2.0 Mtr W
• Frame: Steel Base Chassis
• Walls, Roof & Door: 50mm polyurethane insulated GI sandwich panels
• Colour: RAL 9002
• Flooring: 18mm cement board finished with tiles and provided with a drain hole

Water & Waste Management

• Fresh Water Tank: 200 US Gallon PVC tank
• Waste Tank: 400 US Gallon built-in steel tank positioned at the bottom of the cabin
• Sewage Outlet: 4-inch outlet provision for sewage removal
• Gate Valve: Provided for direct external connection

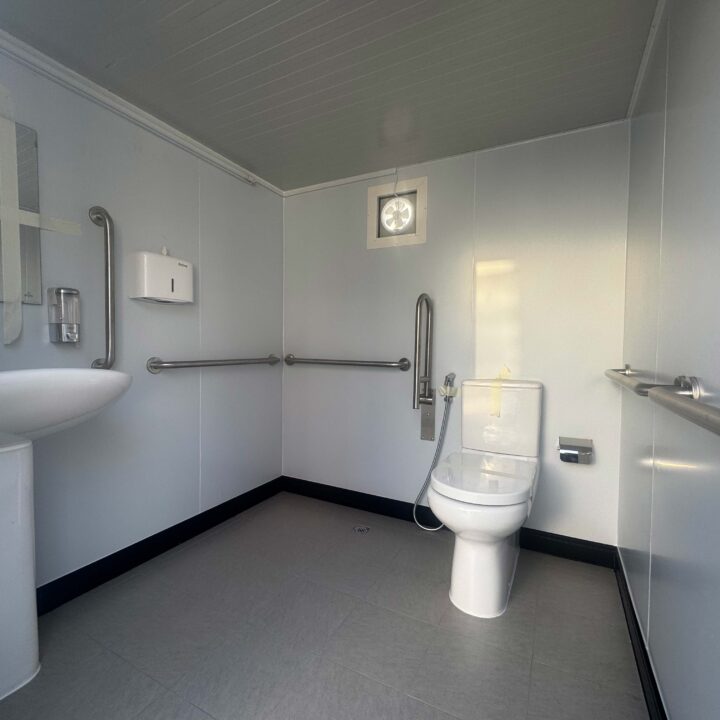

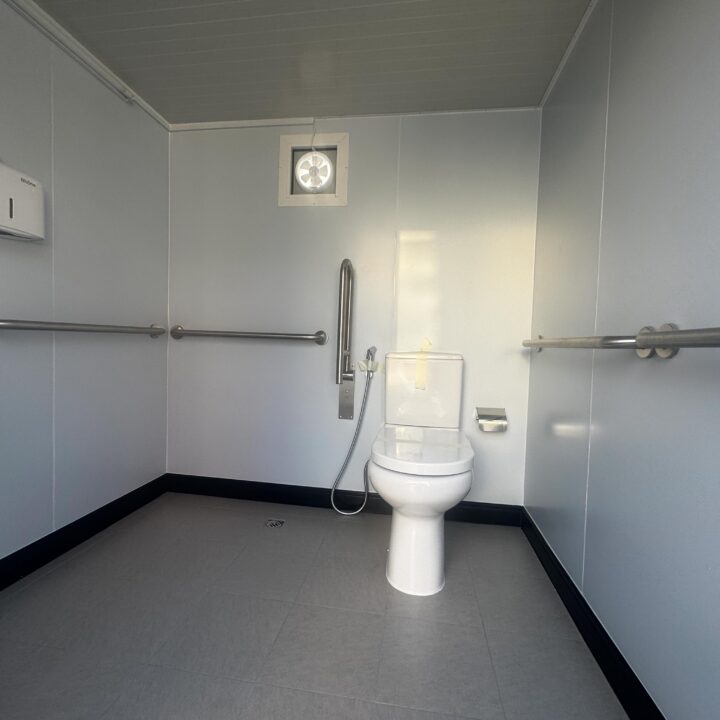

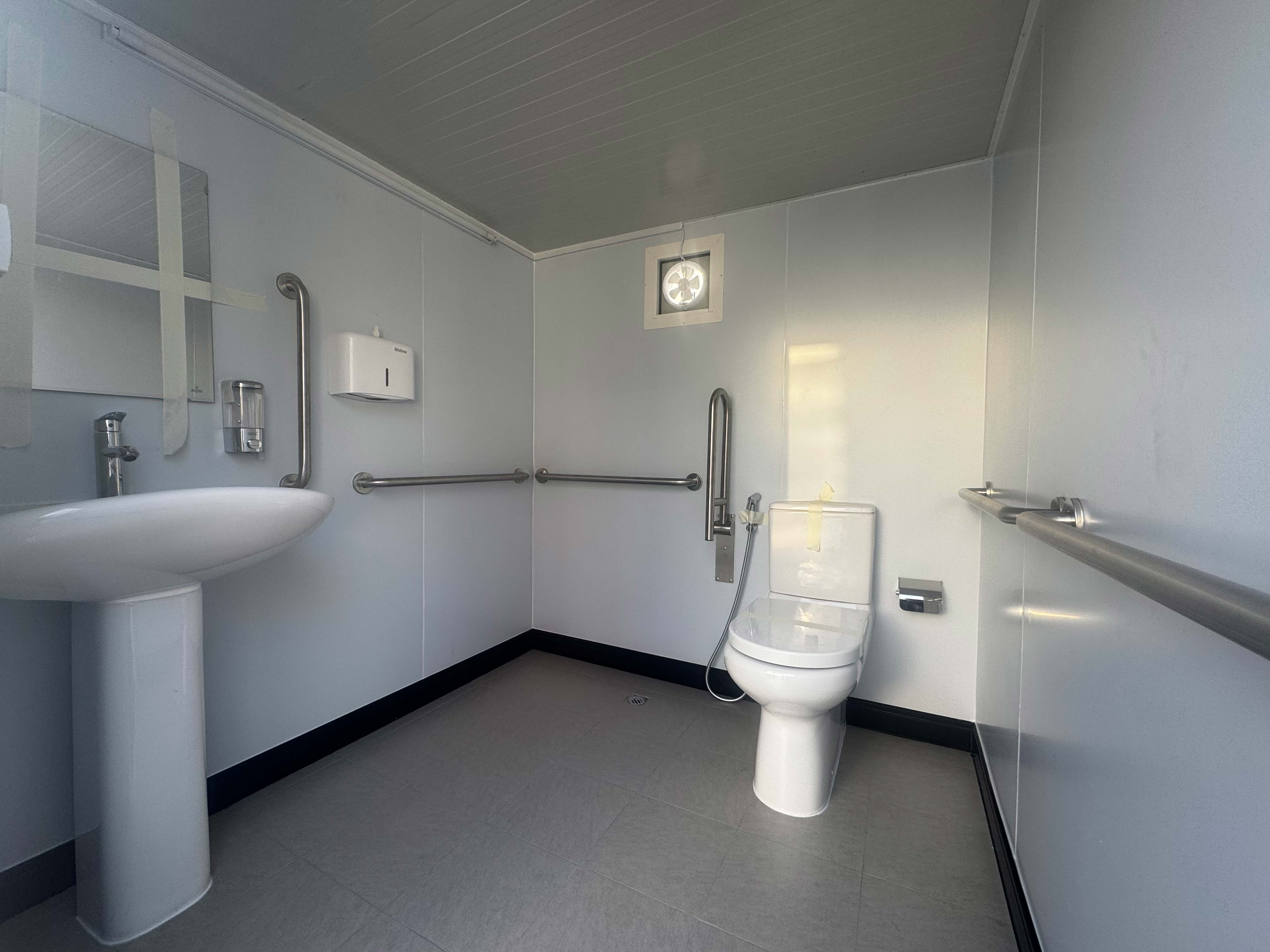

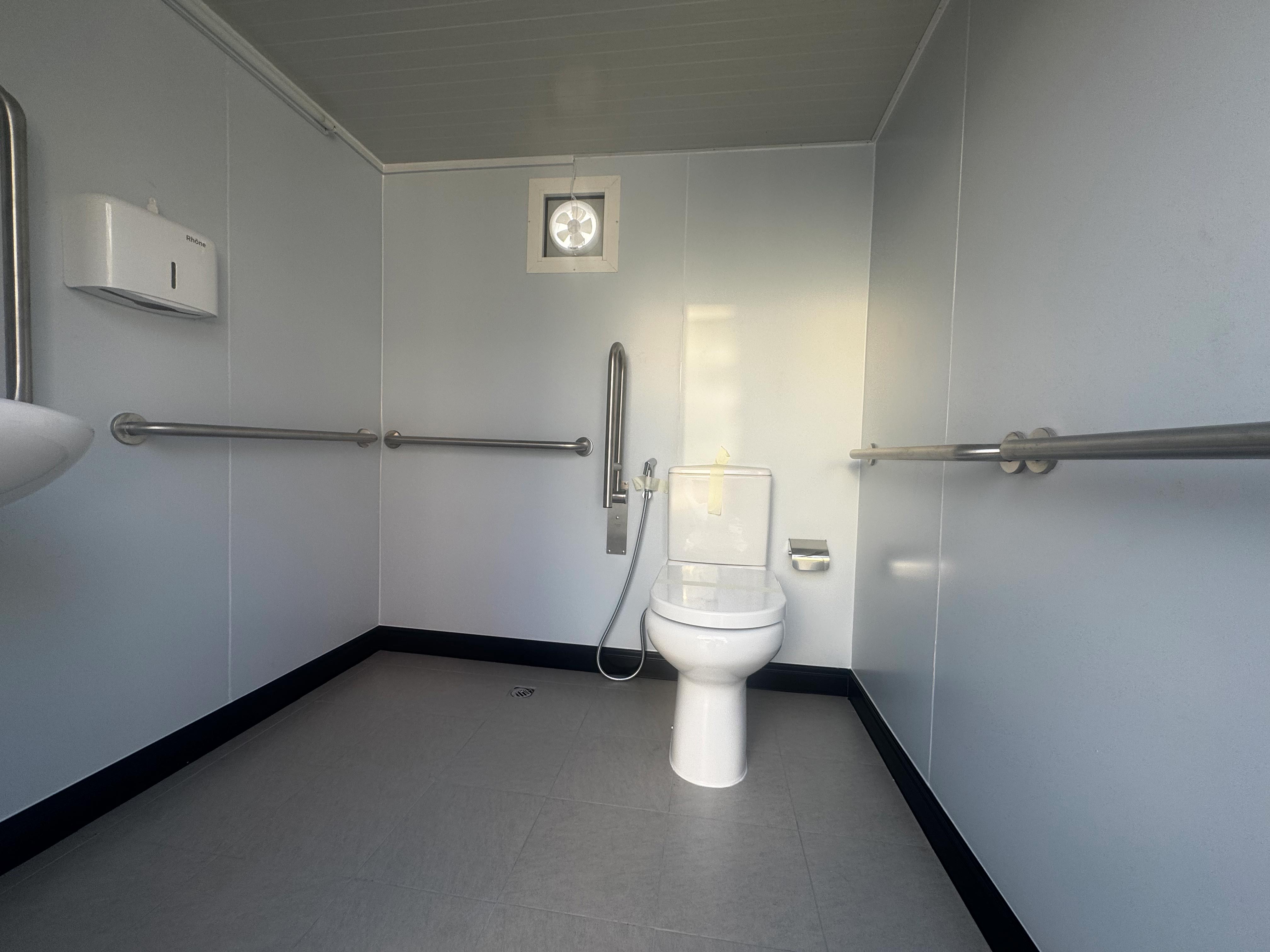

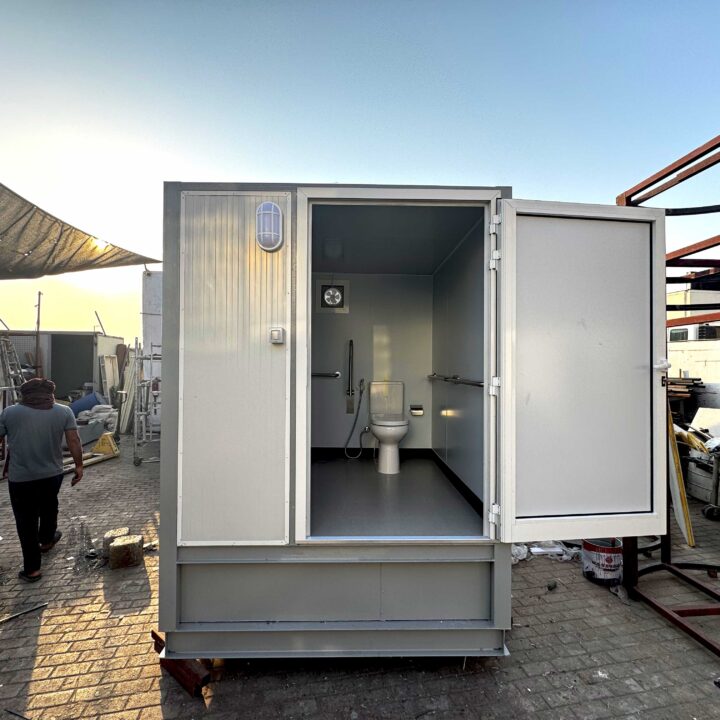

Sanitary Fixtures & Accessibility Features

The cabin is equipped with:

• 1 x European-style WC with flush tank and seat cover
• 1 x Shattaf
• 1 x Washbasin with water tap

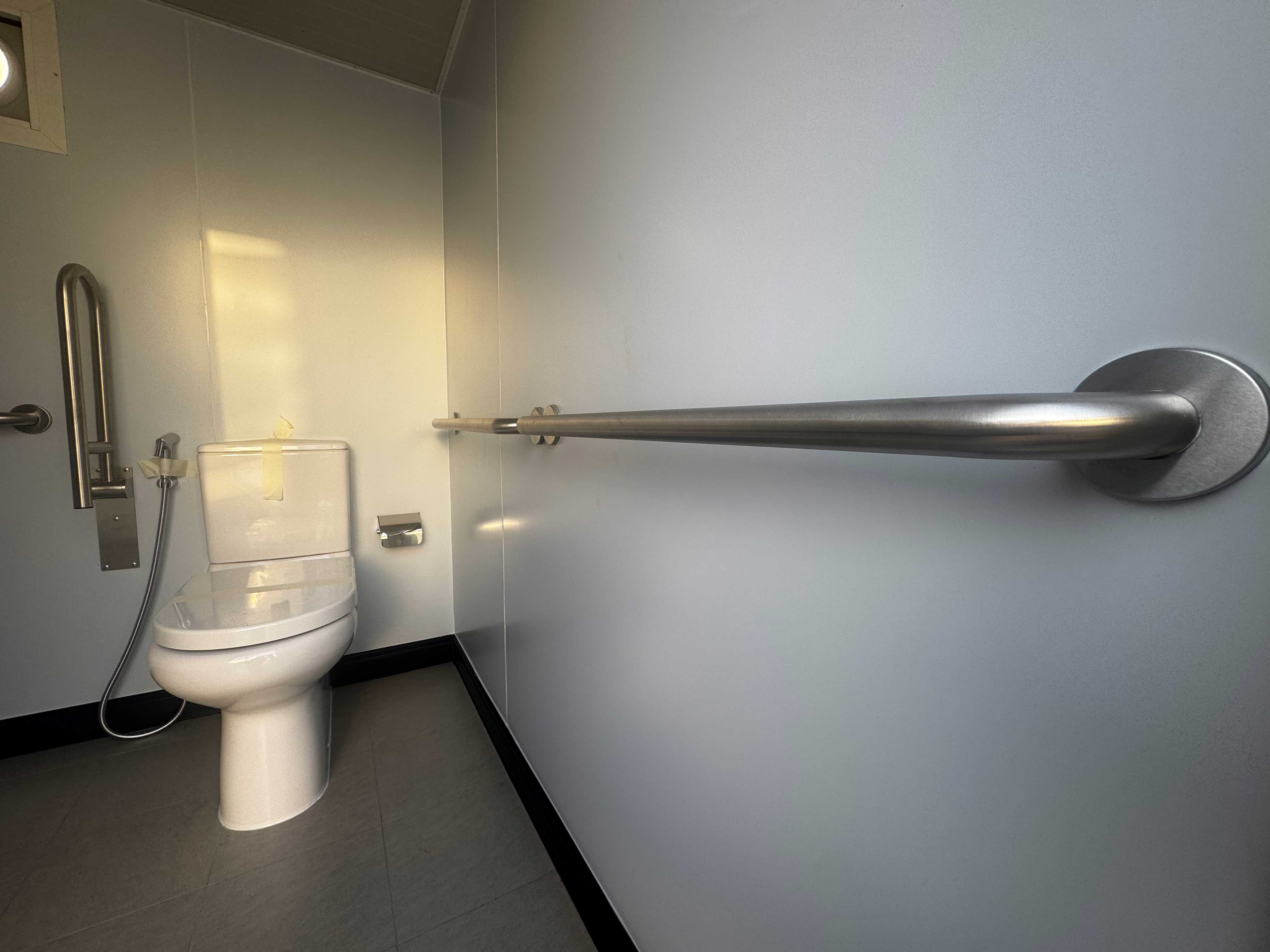

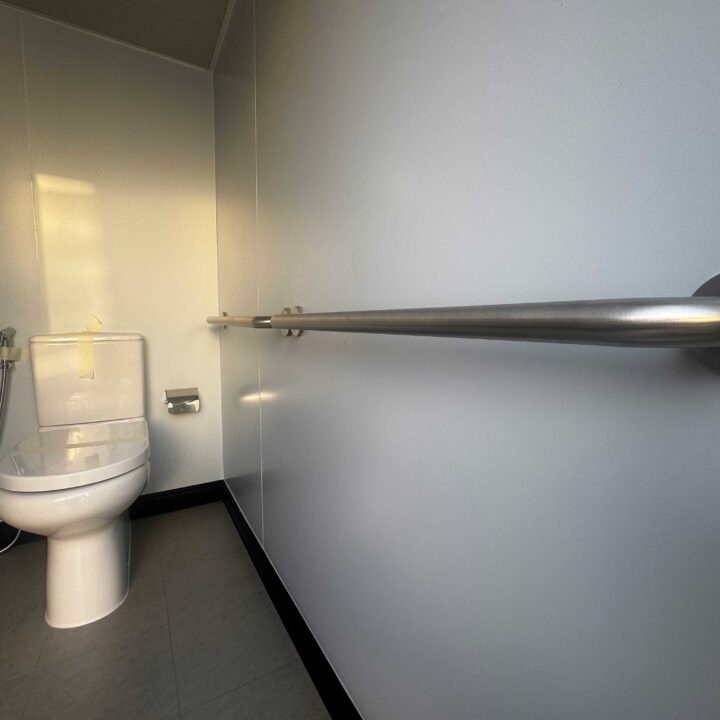

• 1 x Accessibility handle bar
• 1 x Grab bar

The dedicated grab and handle bars provide additional support and improve accessibility and user safety.

Plumbing & Ventilation

• PPR water piping for cold and hot water supply
• Exhaust fan with powder-coated aluminium frame
• Air vent pipe
• Dedicated sewage outlet provision

Electrical & Lighting

The cabin includes:

• LED lighting
• Waterproof switches
• Waterproof power socket

Mobility & Handling

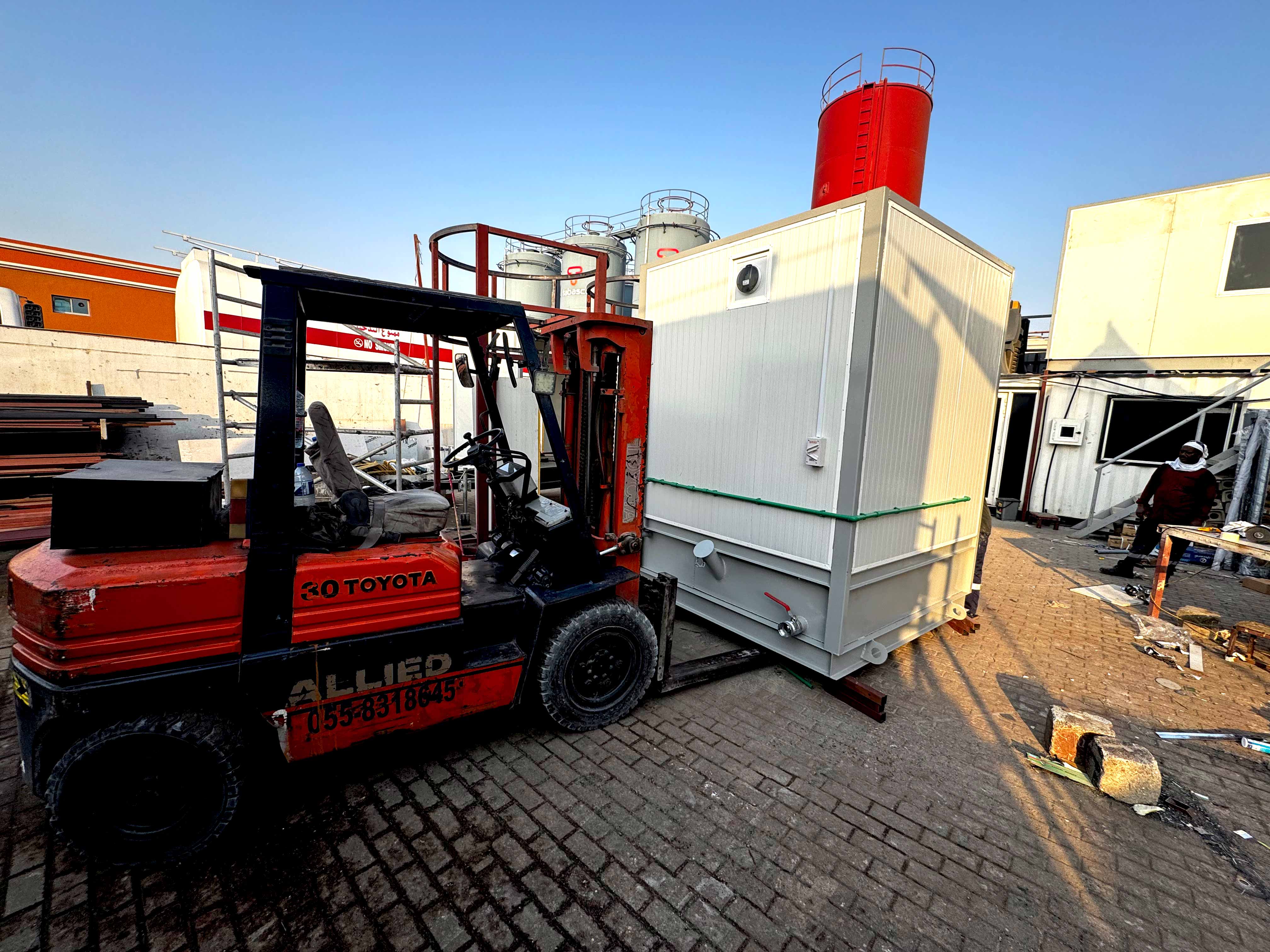

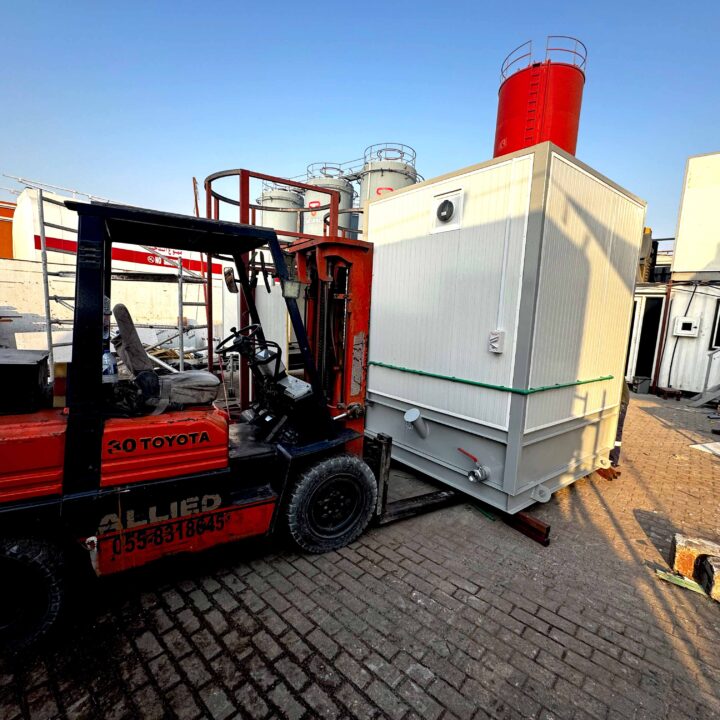

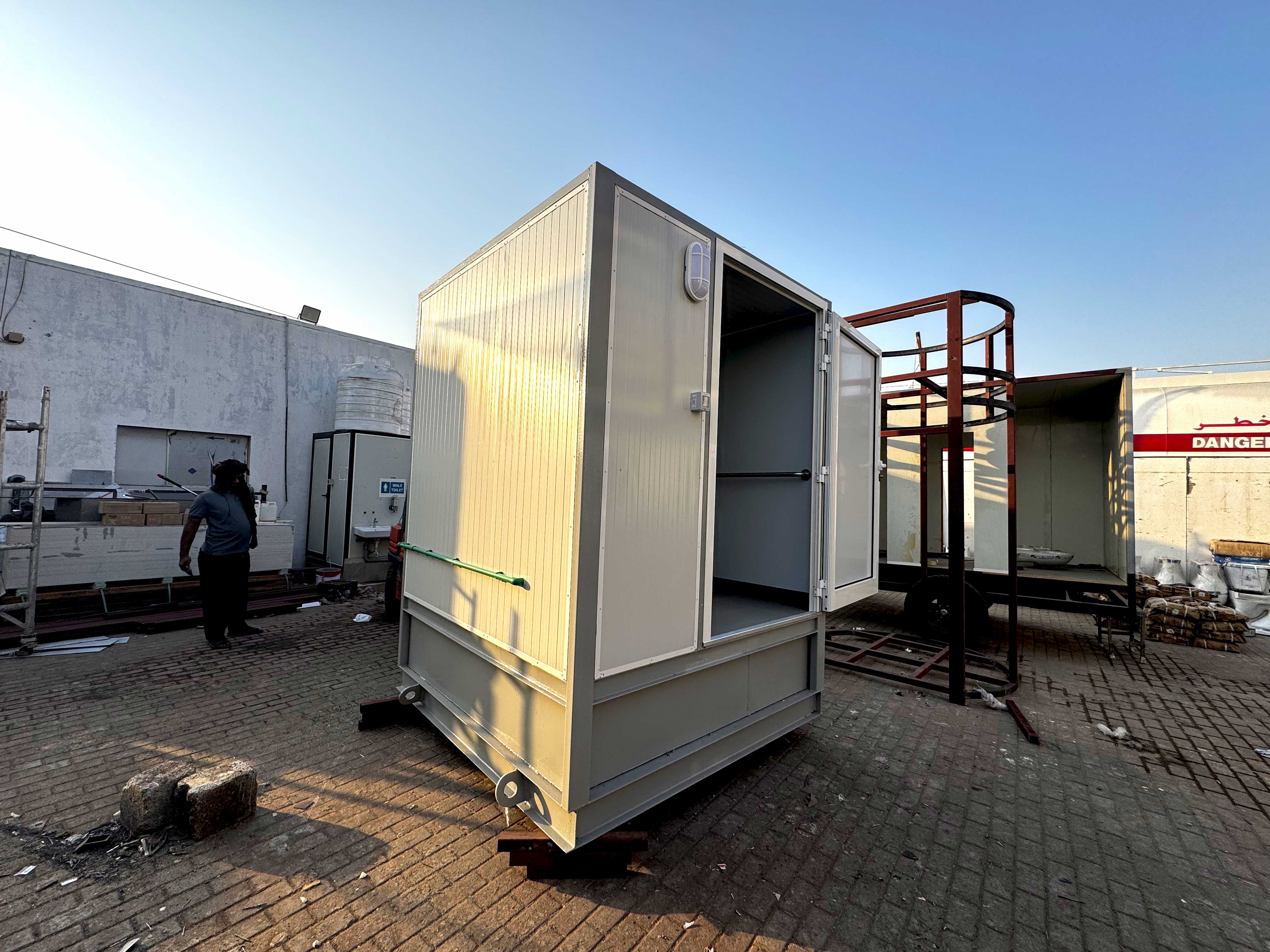

Lifting hooks are provided as an option to facilitate easy loading, unloading, relocation, and transportation of the portable toilet cabin.

Project Details

Project: Dubai Metro Blue Line
Location: Dubai, United Arab Emirates

Project Summary

This accessible portable toilet was developed as a purpose-built sanitation facility for the Dubai Metro Blue Line project, combining accessibility, durability, hygiene, and operational functionality. The robust insulated construction, integrated water and waste storage, accessibility support features, and complete plumbing and electrical provisions make it suitable for demanding construction and infrastructure environments.
